theatre specs theatre in the park

Seating Capacity: 3,000 (for concert type events)

The Theatre bowl is fenced with 4 entry gates.

Tech Bunker (lights and sound)

6" conduits run underground from bunker to stage right and stage left towers.

Paved Parking:

200 spaces

Unpaved Parking:


Box Office:

4 windows, air conditioned

Concessions Building:

2 service lines, staff restroom, running water, air conditioning, backstage access

Public Restrooms:

House Right: 28 Fixtures - 20 women, 8 men

House Left: 20 Fixtures -12 women, 8 men

stage specs theatre in the park

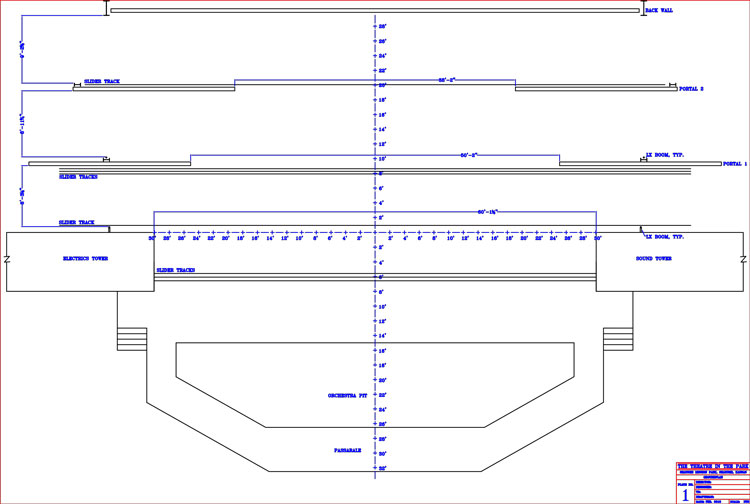

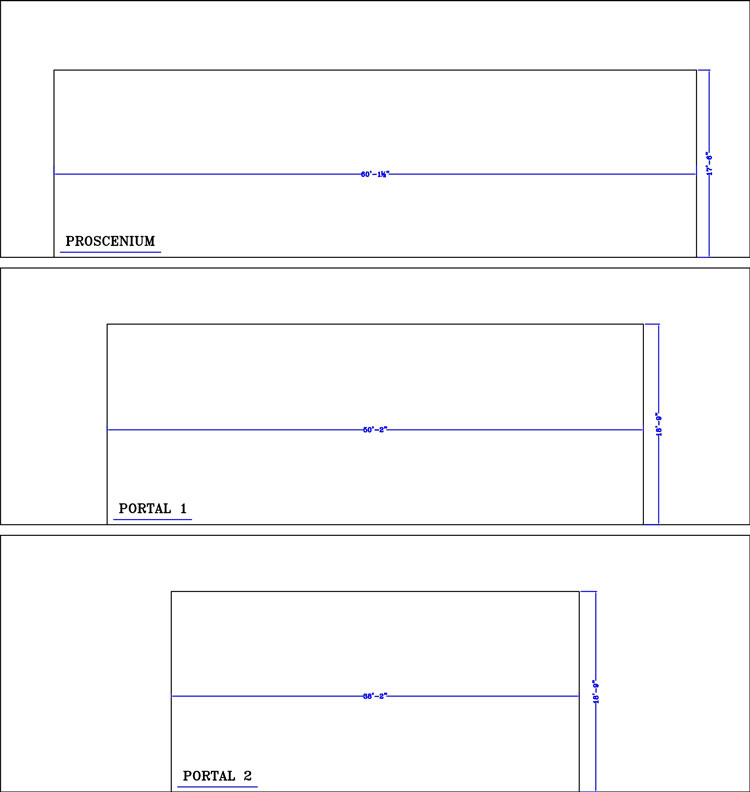

Download a file of the stage layout: CAD (DWG) Format or PDF Format .


60 feet x 40 feet

Stage Deck Composition:

Poured concrete

Hanging Positions:

Many and adaptable

Orchestra Pit:

55 feet x 15 feet

Wing Size:

Both Stage Left and Stage Right are approximately 30 feet wide x 50 feet deep

Back Stage Power:

3 phase 400 amps (Stage Right)
3 phase 200 amps (Stage Left)
2 x 220 volt outlets with 1 x 150 foot extension cord for mobile Dressing Rooms

Dressing Rooms:

2 air conditioned dressing rooms each with: 27 dressing stations, 2 toilets, 2 sinks,
ceiling fans, mirrors, mirror lights, and clothes racks, video and audio monitors.

Back Stage Parking:

Fenced, blacktop with approximately 30 parking spaces

Back Stage Access:

Sufficient access for semi's and over-the-road vehicles
